Range Rover air suspension replaces steel coil springs with rubber air springs or air struts, filled by an electric compressor and managed by a control module that reads a height sensor at each corner. It lets the car lower for access, sit at normal height on the road and rise for off-road driving. There is no fixed lifespan: in Dubai, heat, dust and age decide how long the rubber parts and compressor last.
Key takeaways
- The system combines air springs or struts, a compressor, a valve block, height sensors, air lines and a control module.
- Every full-size Range Rover from the P38 onwards uses it; on the Sport and Velar, fitment depends on generation and trim.
- Heat and dust age rubber and overwork compressors; watch for sagging, longer compressor running and "Suspension Fault" messages.
- Fixing small leaks early protects the compressor.
Range Rover Repairs Dubai handles air suspension diagnosis and repair for Range Rover and Land Rover owners across Dubai.
How Range Rover Air Suspension Works
Instead of steel coil springs, each corner sits on a rubber air spring, or an air strut that combines the air spring and damper. Air pressure inside carries the weight of the car, so changing the pressure changes the ride height.
The control module watches the height sensors. If a corner is too low, it runs the compressor and opens the valve block to add air; if too high, it vents air. That keeps the car level under load.
Simplified Range Rover air suspension diagram
The Main Parts of the System
- Air springs or struts: rubber bellows that roll over a piston as the suspension moves.
- Compressor: an electric pump with an air dryer that removes moisture from incoming air.
- Valve block: solenoid valves that send air to, or release it from, each corner.
- Reservoir: a storage tank on some generations so the car can rise quickly.
- Height sensors: linked to the suspension arms, reporting each corner's position.
- Control module: commands the compressor and valves using sensor readings, speed and driver selections.
- Air lines and fittings: plastic pipes and connectors that can leak once they age.
Ride Heights: Access, Normal and Off-Road
Names and exact heights vary by generation, but most air-sprung Range Rovers offer three settings:
- Access: lowers the body for easier entry and exit, typically when parked or at very low speed.
- Normal: the everyday on-road height.
- Off-road: raises the body for clearance on sand and rough tracks, and returns to normal automatically above a set speed.
Many generations also lower slightly at sustained highway speeds, then rise as you slow.

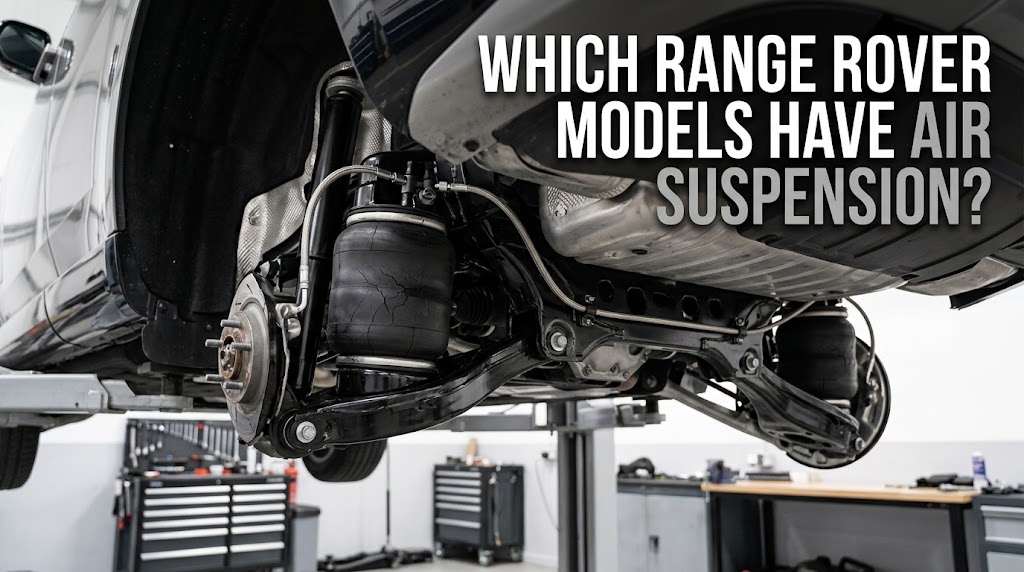

Which Models Use Air Suspension?
Fitment varies by year, trim and market, so if you are buying a Range Rover with air suspension, check the actual car.
| Model | Years | Suspension |
|---|---|---|
| Range Rover P38 | 1994–2002 | Standard, with reservoir |
| Range Rover L322 | 2002–2012 | Standard |
| Range Rover Sport L320 | 2005–2013 | Standard |
| Range Rover L405 | 2013–2021 | Standard |
| Range Rover Sport L494 | 2013–2022 | Most trims; some coil-sprung versions |
| Range Rover L460 | 2022+ | Standard |
| Range Rover Sport L461 | 2022+ | Standard on most trims |
| Range Rover Velar | 2017+ | Selected trims; others use coil springs |
| Range Rover Evoque | 2011–2018, 2019+ | Coil springs, not air suspension |
How Long Do Air Suspension Parts Last?
There is no fixed replacement interval for air springs or compressors . Rubber ages with time as well as kilometres, so even a low-mileage car kept outdoors can have tired air springs.
Why UAE Heat, Dust and Age Wear the System
- Heat: 45–50°C summers and heat rising from roads and car parks harden rubber, which then cracks at the fold where the air spring rolls.
- Dust and sand: grit collects in that fold and rubs the rubber every time the suspension moves.
- Compressor wear: a leak-free system needs only short bursts of air, but compressors have thermal protection and a limited duty cycle. In high temperatures they run hotter, and a leak that keeps them working can make them cut out and trigger a fault.
- Humidity and age: coastal humidity saturates the air dryer, while O-rings, fittings and air lines harden over the years.
Early Warning Signs
Most Range Rover air suspension problems give a warning before the car drops. Have the system checked if you notice:
- One corner sitting lower after the car is parked overnight.
- The compressor running longer or more often than before.
- "Suspension Fault" messages, sometimes with a height or speed restriction.
- Uneven height side to side or front to rear, or slow rising after starting.
How our technicians approach air suspension
We start with a diagnostic scan, then check heights, pressures and likely leak points to find the root cause, so a leaking fitting is not mistaken for a failed compressor. We explain the options and price before any work begins.
Repair or Replace: Your Parts Options
Genuine vs OEM Air Springs
Genuine air springs come in Land Rover packaging. OEM and OEM-equivalent air springs are made by other manufacturers to fit and work like the original, usually at a lower price. The choice depends on the car's age, how long you will keep it and your budget; you can compare options at Range Rover parts Dubai.
Rebuilt vs New Compressors
A worn compressor can sometimes be rebuilt with new piston seals, which only makes sense if the motor and housing are sound. A new unit costs more upfront but replaces everything. Either way, fix any leak behind the failure, or the new part will be overworked too.
Air Suspension Components, Jobs and Typical Costs
| Component | Job | Common failure sign | Typical Dubai price | Range Rover Repairs Dubai |
|---|---|---|---|---|
| Air spring or strut | Replace per corner (parts and labour) | Corner sags overnight, cracks, hissing | AED 3,000–6,500 | AED 1,950–4,550 |
| Compressor | Replace compressor | Runs longer, noisy, slow to raise | AED 3,500–6,000 (L405) | AED 1,800–4,200 |
| Air dryer | Replace dryer | Moisture in system, compressor working harder | Varies by model | 30–70% less than main dealers; quoted after diagnosis |
| Valve block | Reseal or replace | One corner will not hold or rise | Varies by model | 30–70% less than main dealers; quoted after diagnosis |
| Height sensor | Replace sensor or link | Wrong or uneven height, no leak | Varies by model | 30–70% less than main dealers; quoted after diagnosis |
| Air lines and fittings | Replace line or fitting | Slow height loss at one corner | Varies by model | 30–70% less than main dealers; quoted after diagnosis |
The final price depends on model, engine and parts choice: the lower end of our range reflects OEM-equivalent parts and simpler jobs, genuine parts sit at the upper end, and we confirm the exact price on WhatsApp after diagnosis. Our prices are typically 30–70% less than main dealer prices.
Maintenance Tips That Actually Help
- Fix small leaks early. A slow leak makes the compressor work harder, so a small repair can protect a bigger one.
- Don't ignore a compressor that runs constantly; it usually means a leak or wear, and heat makes both worse.
- Keep the battery healthy. The compressor draws heavy current, low voltage can cause suspension faults, and UAE heat shortens battery life.
- Ask for air springs, lines and fittings to be inspected at servicing, ideally before summer.
When to See a Specialist
Not all Range Rover suspension problems are air leaks. Book a diagnosis now if:
- The car sits very low, rests on its bump stops or will not rise after starting.
- A suspension fault message returns after restarting.
- One corner is visibly lower after parking overnight.
- The compressor runs for long periods or keeps cutting out.
- The ride becomes harsh, crashy or unusually bouncy.
Range Rover Repair in Dubai with Range Rover Repairs Dubai
Range Rover Repairs Dubai is an independent Range Rover and Land Rover specialist, not a dealer and not affiliated with Jaguar Land Rover. For Range Rover repair in Dubai, our workshop uses dealer-level diagnostic equipment, so air suspension faults are traced through the control module rather than guessed. We fit genuine and OEM parts and explain the difference, so you choose the option that suits your car and budget. Our prices are typically 30–70% less than main dealer prices, and we offer pickup and delivery across Dubai. Before any work starts, you receive a clear quote on WhatsApp. Whether your car needs an air spring, a compressor or a sensor, the same process applies to Range Rover air suspension repair: diagnose, explain the options, then fix it.
Bottom Line
Range Rover air suspension relies on air springs, compressor, valve block and sensors working together, and UAE heat and dust age them faster. Catching a small leak or a hard-working compressor early can keep the repair smaller. If a warning appears, follow the dashboard message and have the system checked.
Book your Range Rover repair in Dubai
Send your model, year and dashboard message on WhatsApp for a clear quote after diagnosis.
WhatsApp +971 52 791 4606Frequently Asked Questions
How does Range Rover air suspension work?
Each corner has a rubber air spring or air strut instead of a steel coil spring. A control module reads height sensors and uses an electric compressor and valve block to add or release air, keeping the car level and switching between access, normal and off-road heights.
How long does Range Rover air suspension last?
There is no fixed lifespan. Rubber air springs age with time, heat and dust as well as kilometres, and compressor life depends on how hard it works. In Dubai, cars kept outdoors or driven with a slow leak tend to need parts sooner, so regular inspection matters more than mileage.
Does heat damage air suspension?
Yes, over time. Sustained heat hardens rubber air springs so they crack at the folds and start to leak. High temperatures also make the compressor run hotter, and if a leak keeps it working, it can overheat and cut out. Heat also shortens battery life, and low voltage can trigger suspension faults.
Is Range Rover air suspension expensive to fix?
It can be. A typical price in Dubai is AED 3,000–6,500 per corner for air suspension replacement and AED 3,500–6,000 for a compressor on an L405. Range Rover Repairs Dubai charges AED 1,950–4,550 per corner and AED 1,800–4,200 for the compressor, typically 30–70% less than main dealer prices, with the exact price confirmed on WhatsApp after diagnosis.
Can I drive with a suspension fault warning?
Follow the message on your dashboard, as some faults limit speed or ride height. If the car sits very low, rests on its bump stops or the message tells you to stop, do not drive it. Otherwise, keep speeds low, avoid long trips and have the system checked as soon as possible.
