The most common Range Rover 5.0 V8 supercharged problems are timing chain tensioner and guide wear, coolant leaks from the water pump and plastic pipes, and supercharger coupler rattle. Early 2010–2013 engines are most prone to chain wear, while coolant leaks can appear on any year as plastics age in the heat. Most faults give warning signs and cost far less to fix early.
Key takeaways
- Chain wear mostly affects 2010–2013 engines and starts as a short rattle on cold start.
- Coolant loss usually comes from the water pump, coolant pipes or thermostat housing.
- A rattle at warm idle is often the supercharger coupler, not the chain.
- Correct oil, shorter oil changes in heat and regular coolant checks reduce risk.
Range Rover Repairs Dubai diagnoses and repairs these exact 5.0 V8 faults for owners across Dubai.
Which Range Rover Models Use the 5.0 Supercharged V8?
The 5.0 supercharged V8 (AJ-V8 Gen III, often called AJ133) arrived for the 2010 model year. It is fitted to:
It was also used in the Velar SVAutobiography Dynamic Edition and the Defender V8. Range Rover Sport supercharged problems match the full-size models because the engine is shared. The 2022+ L460 Range Rover and L461 Sport use a different twin-turbo V8, so this article does not apply to them.
Common Range Rover 5.0 V8 Supercharged Problems
Most Range Rover 5.0 engine problems fall into a few well-known groups. Model year, mileage and service history all affect how likely each one is.

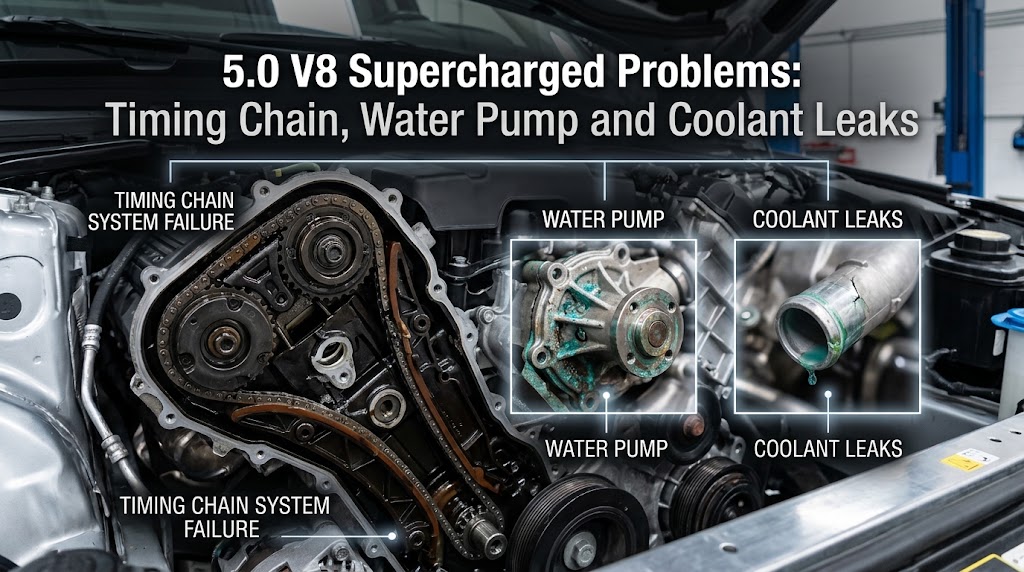

Timing Chain Tensioner and Guide Wear
The timing chains are kept tight by oil-pressure tensioners and run on plastic guides. On early engines these parts can wear and let the chains go slack. Land Rover later revised the parts, so 2010–2013 engines are most affected, though later engines with a poor oil history are not immune.
Expect a rattle from the front of the engine for a few seconds after a cold start, lasting longer as wear grows. Camshaft/crankshaft correlation codes such as P0016–P0019 and a check engine light often follow.
Ignoring it is costly. A slack chain can jump a tooth, damaging the variable valve timing units and, in severe cases, valves and pistons. The repair is labour-heavy, so chains, tensioners and guides are replaced as a set.
Water Pump and Coolant Pipe Leaks
The water pump seal can weep, and many coolant pipes are plastic with rubber O-rings. The coolant crossover pipe in the engine valley under the supercharger is a known leak point, and reaching it means removing the supercharger.
Dubai's 45–50°C summers, stop-start traffic and heavy AC load keep under-bonnet temperatures high, which hardens seals and makes plastics brittle faster.
Warning signs include a sweet coolant smell, a low coolant warning, dried residue around the pump or a gauge that climbs in traffic. Leaks under the supercharger often leave no drip on the ground. Low coolant risks overheating and head gasket damage.
Supercharger Coupler (Isolator) Rattle
A coupler, or isolator, between the supercharger's drive pulley and rotors absorbs shock loads. As it wears, it causes a rattle or knock at idle that usually fades as revs rise.
It is often mistaken for chain rattle. Chain noise is loudest at cold start; coupler noise is present at warm idle. It is not urgent, but it worsens, and replacement means partly dismantling the supercharger.
Other Items to Check
- Thermostat housing: the plastic housing can crack, causing slow coolant loss.
- Oil leaks: cam cover gaskets and front engine seals can seep, giving a burning smell on hot exhaust parts.
- Ignition coils: heat ages coils, causing misfires and codes P0300–P0308.
For tensioners, guides or coolant pipes, genuine and OEM options are available through Range Rover parts Dubai.
How our technicians handle this
We start with a full diagnostic scan and live cam timing data before any parts come off. Then we find the root cause, whether a worn tensioner, a leaking pipe or a tired coupler, and explain your options and the price before any work begins.
Preventive Steps for Dubai Heat
- Oil: use oil meeting Land Rover's specification for your engine, and change it more often than the maximum long-life interval, because heat and stop-start driving count as severe use. The tensioners depend on clean oil.
- Coolant: check the level cold every couple of weeks in summer. Repeated top-ups mean a leak, not routine.
- Listen: note how long any cold-start rattle lasts. A short phone video helps diagnosis.
- Inspect: ask for checks around the water pump, thermostat housing and engine valley at each service.
5.0 V8 Problems: Diagnosis, Fix and Cost
| Problem | Symptom | How we diagnose | Fix | Cost |
|---|---|---|---|---|
| Timing chain wear | Cold-start rattle, P0016–P0019 | Scan, live cam timing data | Chains, tensioners and guides as a set | High (labour-heavy). Ours: typically 30–70% less than main dealers |
| Water pump leak | Coolant smell, low coolant warning | Pressure test, inspection | New pump and seals | Moderate. Ours: typically 30–70% less than main dealers |
| Crossover pipe leak | Coolant loss, no visible drip | Pressure test, UV dye | Remove supercharger, renew pipe and O-rings | Moderate to high. Ours: typically 30–70% less than main dealers |
| Supercharger coupler | Rattle at warm idle | Noise isolation test | Replace coupler | Moderate. Ours: typically 30–70% less than main dealers |
| Thermostat housing | Slow coolant loss | Pressure test | New housing and seals | Lower to moderate. Ours: typically 30–70% less than main dealers |
| Ignition coils | Misfire, P0300–P0308 | Scan, coil swap test | Replace coils, check plugs | Lower. Ours: typically 30–70% less than main dealers |
The final price depends on model, engine and parts choice: the lower end of our range reflects OEM-equivalent parts and simpler jobs, and genuine parts sit at the upper end. Our prices are typically 30–70% less than main dealer prices, and we confirm the exact price on WhatsApp after diagnosis.
When to See a Specialist
Book a diagnosis now if you notice:
- A cold-start rattle lasting more than a few seconds, or getting longer
- A check engine light with cam timing or misfire codes
- A low coolant warning or repeated top-ups
- Coolant smell, steam or a rising temperature gauge
- A new rattle or knock at idle
If the gauge reaches red or the check engine light flashes, stop driving and arrange recovery.
Range Rover Repair in Dubai with Range Rover Repairs Dubai
Range Rover Repairs Dubai is an independent Range Rover and Land Rover specialist, not a dealer. We use dealer-level diagnostic equipment, reading full fault data and live cam timing values.
We fit genuine and OEM parts and explain the difference, so you choose with price and long-term use in mind. Our prices are typically 30–70% less than main dealers, and we offer pickup and delivery across Dubai, which helps when your vehicle is losing coolant or showing warnings.
You get a clear quote on WhatsApp before work starts. For anyone looking for Range Rover repair in Dubai, it means timing chain wear, coolant leaks or supercharger noise on your 5.0 V8 is handled as a planned Range Rover engine repair: diagnosed properly, priced upfront and fixed with the agreed parts.
Bottom Line
The 5.0 V8's weak points follow clear patterns: chain wear on early engines, coolant leaks as plastics age and coupler noise at idle. Not every engine will develop them, but each is cheaper to fix early. If you hear a rattle or keep topping up coolant, book a diagnosis.
Book your Range Rover repair in Dubai
Share your model and symptoms for a clear quote before any work starts.
WhatsApp +971 52 791 4606Frequently Asked Questions
Is the Range Rover 5.0 V8 reliable?
It can be, if serviced on time with the correct oil and coolant. Its known weak points are timing chain tensioners and guides, mainly on 2010–2013 engines, plus coolant pipes, water pumps and the supercharger coupler. A full service history and early attention to warning signs make a big difference.
What does a timing chain rattle sound like on the 5.0 V8?
Usually a metallic rattle from the front of the engine for a few seconds after a cold start, fading as oil pressure builds. As wear grows, it lasts longer and cam timing fault codes may appear. A rattle only at warm idle is more often the supercharger coupler.
How much is a 5.0 V8 timing chain replacement in Dubai?
It is a labour-heavy job because the front of the engine is dismantled, and the price depends on model, parts choice and whether VVT units need replacing. Range Rover Repairs Dubai typically charges 30–70% less than main dealers and confirms the exact price on WhatsApp after diagnosis.
Why does my 5.0 V8 lose coolant?
Common causes are a weeping water pump, leaking plastic coolant pipes such as the crossover pipe under the supercharger, a cracked thermostat housing or a split expansion tank. UAE heat ages plastics and seals faster. Leaks under the supercharger often leave no drip, so a pressure test is the reliable way to find them.
What is the supercharger coupler rattle?
The supercharger has a coupler, or isolator, between its drive pulley and rotors that absorbs shock loads. When it wears, it rattles or knocks at idle, usually quietening as revs rise. It is not urgent but worsens over time, and replacement means partly dismantling the supercharger.
